Color your world with the industry's most versatile 2x1 LED soft panel.
Creative lighting in an instant!

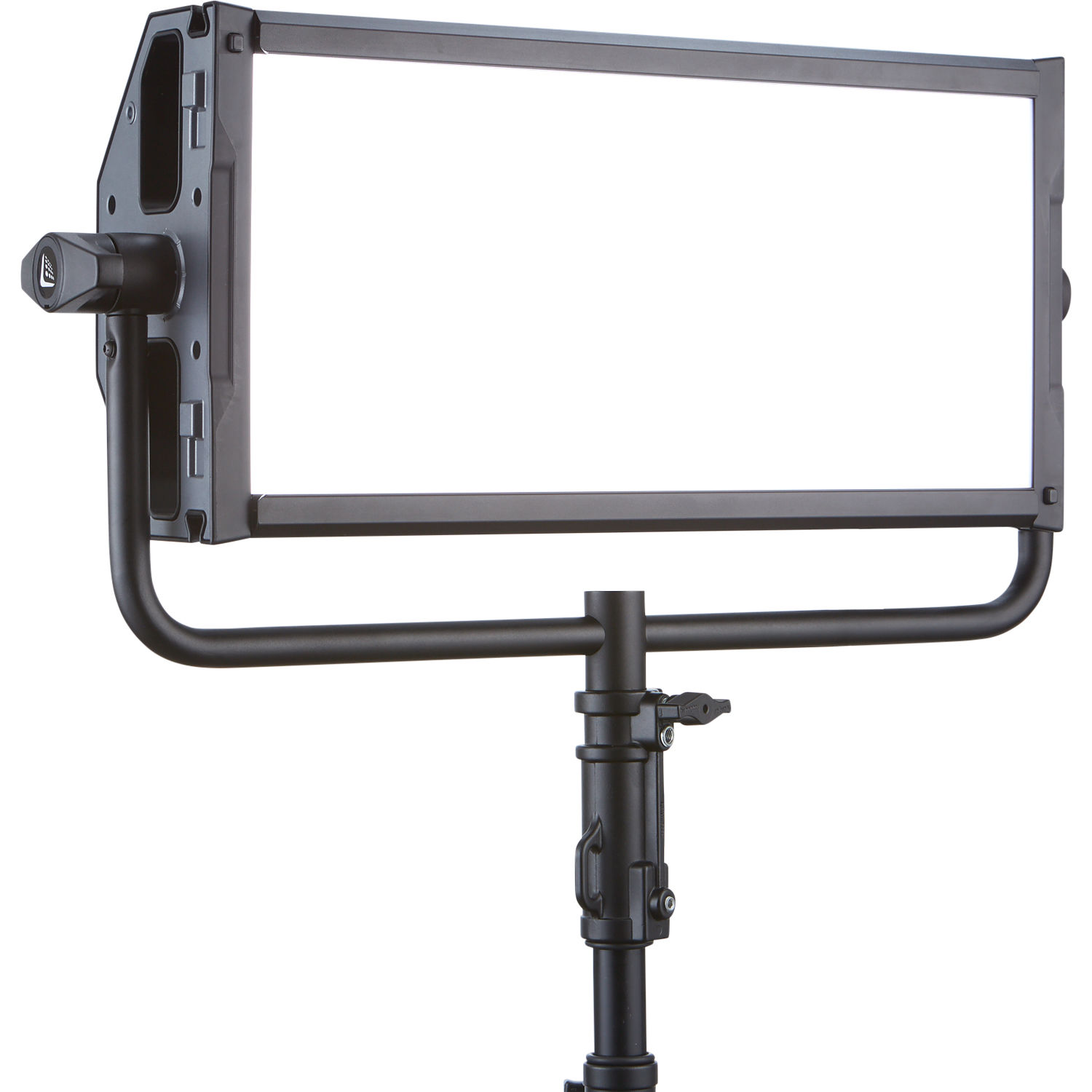

Gemini 2x1 Soft RGBWW LED Panel delivers the industry’s widest range of cinematic lighting capabilities in a lightweight and versatile fixture. A true soft light with outstanding power and performance, Gemini 2x1 Soft features over 16.7 million colors, and 11 cinematic lighting effects instantly available at the touch of a button as well as full-spectrum white light from 2,700K to 10,000K CCT. The top 300 industry-standard gels are built-in with the ability to use either Tungsten or Daylight source, for a total of 600 gel options. The Gemini 2x1 Soft provides DPs, lighting designers and gaffers with a no-compromise solution that has incredible value.
Light it your way
With an outstanding TLCI and CRI rating of 99, Gemini 2x1 Soft creates the industry’s most accurate soft light. The quality of light is consistent, with no color shift or flicker at any frame rate or shutter angle and throughout the full range of dimming from 100-0%. Create and save your own custom lighting settings for instant recall with six user-defined presets, easily save presets to a USB drive to quickly install to other Gemini fixtures. When it is time to get creative with colors and effects, five lighting modes make Gemini 2x1 Soft the most versatile way to perfectly light your scene.
_RGBW Mode allows individual control over the red, green, blue and white LEDs to generate over 16.7 million beautifully rich colors.
_HSI Mode for precision color mixing using hue, saturation and intensity to deliver any color in the 360º color wheel.
_CCT Mode offers highly-accurate, full-spectrum correlated color temperature control from a warm 2,700K to a cool 10,000K with full plus-minus green/magenta tint adjustment.
_Gel Mode features a digital library of 300 industry-standard gels with the ability to use either Tungsten or Daylight source, for a total of 600 gel options.
_Effects Mode delivers 11 fully customizable cinematic special effects including: Emergency, Fire, Fireworks, Hue Burst, Lightning, Paparazzi, Party Lites, Pulsing, Squares, Strobe and TV/Monitor.
Creative control is quick and easy from the onboard control panel, whether you’re on set or on location. For remote control, choose from wired RJ45 or XLR5 DMX options, or switch to wireless DMX (LumenRadio) or Bluetooth paired with Litepanels SmartLite Director iOS app for a world of light, effects and color at your fingertips.
_Litepanels SmartLite Director app
Next generation smart lighting control. The Litepanels SmartLite Director app allows intuitive adjustment of the color and intensity of multiple connected Gemini lights. Use the camera on an iPad or iPhone to quickly evaluate the ambient light in a scene and match the color temperature for dynamic setups.
Expand your lighting universe. Gemini 2x1 Soft includes IN and THROUGH DMX XLR5 and RJ45 connectors to daisy-chain lights together for lighting large sets, or stacking units into dual or quad Gemini configurations. Build up bigger banks of light when you need it, and easily break them down into individual lights for smaller setups.
You have the Power
Any Time, Any Place
With multi-voltage power input from 100-240VAC, Gemini is the global lighting solution. The low power draw of Gemini allows up to four units to be daisy-chained together off a single power outlet. When AC power is not available, there’s no need to compromise - Gemini operates at full intensity from V-Mount, Gold Mount or VCLX-style block batteries, to ensure the perfect light is always available in any location.
Lightweight with a built-in power supply, Gemini lights are ready to work right out of the box with no extra cables, parts to assemble, or modules to add – making your setup time dramatically more efficient.
- Voltage Range: 100-240 VAC, DC Input 23V to 34V
- Power Consumption: 325 W nominal
- LED Technology: RGBWW
- Color Temperature: 2,700-10,000K
- Lighting Intensity: 3.2k @ 10 ft / 3m = 557 LUX, 5.6k @ 10 ft / 3m = 614 LUX
- CRI / TLCI: daylight: 99, tungsten: 99
- Beam and Field Angle: 110° / 156°
- Control: DMX (5 PIN & RJ45), optional wireless DMX (LumenRadio), Bluetooth, Litepanels SmartLite Director App
- Color Controls: Kelvin temperature, plus/minus green, Hue, Saturation, Intensity, gel presets
- Low End Dimming: from 0.1%, automatic flicker-free capability at any frame rate or shutter speed
- Battery Powered: optional V-Mount & Gold Mount plates available, runs at 100% on 26V and dual 14.4V batteries
- Cooling: ultra-quiet fan with optional silent mode
- IP Rating: IP20
- Mount: 1-1/8"" (28 mm) pin, stackable as 2 & 4 units
- Fixture Dimensions: 25"" x 12.5"" x 6.5"" / 635mm x 318mm x 165 mm
- Front Area Dimension: 23.75"" x 11"" / 603.25mm x 279.4mm
- Weight: 22.2 lbs / 10.10 kg
In The BOX:
- Litepanels Gemini 2x1 Soft RGBWW Fixture with integrated power supply
- Pole-Operated Yoke with Junior Pin
- 3m Bare Ends powerCON cable
- Limited one-year warranty, extend to a total of two years with product registration
